There are three parties in the OSB MDI-QSDC protocol, say Alice, Bob, and Charlie, where Alice (sender) who wants to send her secret messages to Bob (receiver), and Charlie is an untrusted quantum measurement device performs Bell measurements and could be fully controlled by an adversary, Eve. Alice and Bob use one of the following Bell states:

\(\begin{aligned} |\psi ^{+}\rangle & = \frac{1}{\sqrt{2}}\left( |00\rangle +|11\rangle \right) \nonumber \\ |\psi ^{-}\rangle & = \frac{1}{\sqrt{2}}\left( |00\rangle -|11\rangle \right) \nonumber \\ |\phi ^{+}\rangle & = \frac{1}{\sqrt{2}}\left( |01\rangle +|10\rangle \right) \nonumber \\ |\phi ^{-}\rangle & = \frac{1}{\sqrt{2}}\left( |01\rangle -|10\rangle \right) \end{aligned}\)

(1)

The following are the steps involved in the protocol.

Step 1: Preparation: Alice prepares n number of a Bell state, i.e., \(|\psi ^{+}\rangle _{12}^{\otimes n}\). She prepares the two ordered sequences of all the first qubits as sequence \(A_{M}\) (on which she is supposed to encode her secret message later) and of all the second qubits as sequence \(A_{E}\) (which is to be used for entanglement swapping with Bob’s \(B_{E}\)). Further, she prepares n number of decoy Bell states \(|\psi ^{+}\rangle _{d_{1}d_{2}}^{\otimes n}\), where d stands for the verification qubits as decoy Bell pairs. She takes \(|\psi ^{+}\rangle _{d_{1}d_{2}}^{\otimes n/2}\) decoy pairs, keeps all \(d_{1}\) decoys with herself, and inserts \(d_{2}\) partner decoys randomly in \(A_{E}\) sequence to obtain an extended \(A_{E}^{\prime }\) sequence. Similarly, Bob also prepares n number of the Bell states randomly in \(|\psi ^{+}\rangle _{34}\) or \(|\psi ^{-}\rangle _{34}\). He prepares the two ordered sequences of all the first qubits as sequence \(B_{M}\) and of all the second qubits as sequence \(B_{E}\). Subsequently, he prepares n number of decoy Bell states \(|\psi ^{+}\rangle _{d_{3}d_{4}}^{\otimes n},\) he takes \(|\psi ^{+}\rangle _{d_{3}d_{4}}^{\otimes n/2}\) decoy pairs, keeps all \(d_{3}\) decoys with himself, and inserts \(d_{4}\) partner decoys randomly in \(B_{E}\) sequence to obtain an extended \(B_{E}^{\prime }\) sequence. Alice and Bob keep their rest of the decoy Bell pairs \(|\psi ^{+}\rangle _{d_{1}d_{2}}^{\otimes n/2}\), \(|\psi ^{+}\rangle _{d_{3}d_{4}}^{\otimes n/2}\) separately for the security of the communication of \(A_{M}\) and \(B_{M}\) sequences to Charlie. It is to be noted that all decoys \(d_{2}\) and \(d_{4}\) have been randomly inserted in the communication channel, i.e., each partner particle of a decoy Bell pair has random position in extended sequences \(A_{E}^{\prime }\) and \(B_{E}^{\prime }\) and the actual sequence is known to Alice and Bob, respectively.

Here, Alice and Bob can prepare the decoy Bell pairs randomly in any one (or a random series of all) of the Bell states \(\{|\psi ^{\pm }\rangle _{dd^{\prime }},|\phi ^{\pm }\rangle _{dd^{\prime }}\}\) to keep the decoy state secret, which does not allow Charlie to announce any particular fake decoy Bell measurement outcome.

Step 2: Transmission of \(\boldsymbol{A}_{\boldsymbol{E}}^{\boldsymbol{\prime }}\) and \(\boldsymbol{B}_{\boldsymbol{E}}^{\boldsymbol{\prime }}\) sequences: Alice and Bob keep the sequence \(A_{M}\) and \(B_{M}\) and their respective decoys \(d_{1}\) and \(d_{3}\) with themselves and send the extended \(A_{E}^{\prime }\) and \(B_{E}^{\prime }\) sequences to Charlie to allow him to perform the Bell measurement as shown in Fig 1. Without having any knowledge to distinguish between entangled (E) or decoy (\(d_{2},d_{4}\)) partner particles in the received sequences \(A_{E}^{\prime }\) and \(B_{E}^{\prime }\) from Alice and Bob, respectively, Charlie performs the joint Bell measurement on both the sequences \(A_{E}^{\prime }\) and \(B_{E}^{\prime }\) and announces the Bell measurement outcome (BMO) which leads to 4 cases as shown below in Table 1.

(Color online) A schematic illustrating the establishment of secure entanglement channel between Alice and Bob via Charlie’s Bell measurement assistance in our OSB MDI-QSDC protocol

 Full size image

Table 1 4 cases of Bell measurement performed by Charlie and their corresponding actions in the protocol

4 cases	\(\boldsymbol{A}_{\boldsymbol{E}}^{\boldsymbol{\prime }}\)	\(\boldsymbol{B}_{\boldsymbol{E}}^{\boldsymbol{\prime }}\)	Actions
Case I	\(d_{2}\)	\(d_{4}\)	Correlation security check from Eve/Charlie’s fake BMO announcement
Case II	E	\(d_{4}\)	Correlation security check from Eve/Charlie’s fake BMO announcement
Case III	\(d_{2}\)	E	Correlation security check from Eve/Charlie’s fake BMO announcement
Case IV	E	E	Entanglement swapping (ES) for message transmission

As can be followed in Fig. 1, Charlie’s Bell measurement on the sequences \(A_{E}^{\prime }\) and \(B_{E}^{\prime }\) leads to entanglement swapping, and Alice’s and Bob’s corresponding home sequences \(A_{M}\), \(B_{M}\), along with their decoys \(d_{1}\), \(d_{3}\); E, \(d_{3}\); \(d_{1}\), E become pairwise entangled between Alice and Bob.

Step 3: Eavesdropping check: After Charlie’s BMO announcement, Alice and Bob announce the positions of decoys \(d_{2}\) and \(d_{4}\) in their \(A_{E}^{\prime }\) and \(B_{E}^{\prime }\) sequences, respectively. They also announce their initially prepared decoy Bell pair state. For case I, both Alice and Bob measure their home decoy qubits \(d_{1}\) and \(d_{3}\) in computational basis \(\{|0\rangle ,|1\rangle \}\) and check the correlation according to the Bell measurement outcome of Charlie’s announcement. This is because Alice’s and Bob’s home decoy qubits \(d_{1}\) and \(d_{3}\) are Bell entangled (due to entanglement swapping) after Charlie performs Bell measurement on decoys \(d_{2}\) and \(d_{4}\) received from Alice and Bob, let us consider if Charlie’s announces \(|\psi ^{+}\rangle _{d_{2}d_{4}}\) as his BMO then Alice and Bob home decoys will be \(|\psi ^{+}\rangle _{d_{1}d_{3}}\) so if Alice’s measurement (in computational basis) outcome on \(d_{1}\) is \(|0\rangle (|1\rangle )\) then Bob’s outcome on \(d_{3}\) will be correlated and should be \(|0\rangle (|1\rangle )\). Further for case II, Alice measures her corresponding entangled qubit and Bob measures his home decoy qubits \(d_{3}\) in \(\{|0\rangle ,|1\rangle \}\) and check for correlation according to the BMO of Charlie’s announcement. Similarly, for case III, Alice measures her home decoy qubits \(d_{1}\) and Bob measures his corresponding entangled qubit in \(\{|0\rangle ,|1\rangle \}\) and check for correlation according to the BMO of Charlie’s announcement (here Bob also has to announce his initial Bell state \(|\psi ^{+}\rangle _{34}\) or \(|\psi ^{-}\rangle _{34}\) to help Alice for correlation check). These three cases ensure the security against an eavesdropper “Eve” and any fake transmission or announcements (without actually making) Bell measurement by Charlie, because any eavesdropping/mischievous will disturb the correlation check that Alice and Bob can easily identify. For example, if Eve performs an intercept-and-resend attack, she would be exposed when Alice and Bob calculate the error rate on correlation check and if they find this error rate below the threshold value then they continue to the next step, otherwise they discard the protocol and starts afresh.

It is reasonable to think that case I is enough to ensure the security against Eve/Charlie, then cases II and III can also be used for message encoding just as case IV and that would make the OSB MDI-QSDC more efficient. In such a case, Alice just need to announce the initial Bell decoy state in case III she prepared initially, although in case II, initial Bell state \(|\psi ^{+}\rangle _{12}\) is already known.

Step 4: Entanglement swapping: Now for case VI, due to Charlie’s Bell measurement on each pair of \(A_{E}\) and \(B_{E}\) sequences (i.e., the qubits 2, 4) leads to quantum entanglement swapping, resulting the corresponding \(A_{M}\) and \(B_{M}\) sequences become pair-wise entangled as Bell states (i.e., the qubits 1, 3) as shown below in Eq. 2.

\(\begin{aligned} |\psi ^{+}\rangle _{12}\otimes |\psi ^{+}\rangle _{34} & = \frac{1}{2}\left( |\psi ^{+}\rangle _{13}|\psi ^{+}\rangle _{24}+|\phi ^{+}\rangle _{13}|\phi ^{+}\rangle _{24}+|\phi ^{-}\rangle _{13}|\phi ^{-}\rangle _{24}+|\psi ^{-}\rangle _{13}|\psi ^{-}\rangle _{24}\right) ,\nonumber \\ |\psi ^{+}\rangle _{12}\otimes |\psi ^{-}\rangle _{34} & = \frac{1}{2}\left( |\psi ^{+}\rangle _{13}|\psi ^{-}\rangle _{24}-|\phi ^{+}\rangle _{13}|\phi ^{-}\rangle _{24}-|\phi ^{-}\rangle _{13}|\phi ^{+}\rangle _{24}+|\psi ^{-}\rangle _{13}|\psi ^{+}\rangle _{24}\right) . \end{aligned}\)

(2)

It is to be noted that Bell-state analysis is crucial in entanglement-based QSDC, as it allows the sender and receiver to distinguish between different Bell states to extract secure information. However, in standard linear optics, fully complete Bell-state analysis is not achievable with linear optics alone, i.e., Bell state discrimination is limited to only two Bell states. This problem has been addressed via advanced techniques such as hyperentanglement [49, 50], kerr nonlinearity [51], or ancillary photons [52] enable full discrimination. For example, non-destructive discrimination of all four Bell states has been successfully demonstrated with the aid of ancillary qubits, which can be reused in subsequent measurement iterations [53, 54]. These methods are essential for entanglement-based QSDC to ensure secure and reliable quantum communication.

Step 5: Message encoding by Alice: After the eavesdropping check is confirmed that there is no eavesdropping or no fake announcements from Charlie, Alice (Bob) discarded all the corresponding partner entangled (E) qubits from \(A_{M}(B_{M})\) which contributed to cases II (III) and will start message coding process (on case IV) as shown in Fig. 2. Alice holds \(A_{M}\) sequence initially prepared in \(|\psi ^{+}\rangle _{12}\) state whereas Bob holds \(B_{M}\) sequence randomly prepared in \(|\psi ^{+}\rangle _{34}\) and \(|\psi ^{-}\rangle _{34}\) states initially. Both the ordered sequences \(A_{M}\) and \(B_{M}\) are now Bell entangled (i.e., \((A_{M},B_{M})\) pairwise entangled) due to the entanglement swapping in the last step. Therefore, \((A_{M},B_{M})\) states are only known to Bob based on his initial preparation of \(|\psi ^{+}\rangle _{34}\) or \(|\psi ^{-}\rangle _{34}\). Now, Alice applies the unitary (Pauli) operations \(U_{0}=I,\) \(U_{1}=X,\) \(U_{2}=iY,\) and \(U_{3}=Z\) on the qubits of \(A_{M}\) sequence to encode her 2-bits of classical information 00, 01, 10, and 11, respectively. After encoding her secret messages on \(A_{M}\) sequence, Alice finds an encoded sequence \(A_{M}^{\prime }\), in which she inserts rest of the decoy Bell pairs \(|\psi ^{+}\rangle _{d_{1}d_{2}}^{\otimes n/2}\) randomly (to follow the GV subroutine [40] for security check in next step) and sends an extended message encoded sequence \(A_{M}^{\prime \prime }\) to Charlie. At the same time, Bob randomly applies I or X from the set of cover operations \(\{I,X\}\) on the qubits of \(B_{M}\). The cover operations help against information leakage as mentioned in Refs. [33, 35]. He also inserts rest of the decoy Bell pairs \(|\psi ^{+}\rangle _{d_{3}d_{4}}^{\otimes n/2}\) randomly (to follow the GV subroutine [40] for security check in next step) in \(B_{M}\) sequence and sends an extended sequence \(B_{M}^{\prime }\) to Charlie.

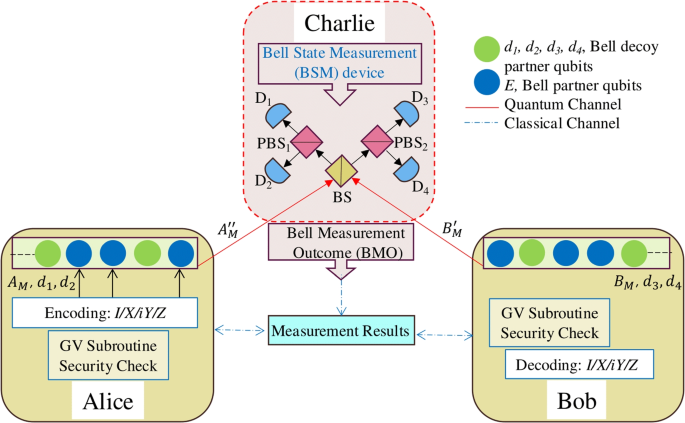

(Color online) Basic set-up of Alice and Bob illustrating their cryptographic process (encoding, decoding, and eavesdropping checking by GV subroutine [40, 42]) along with experimental design of Charlie’s Bell measurement device crucial in our OSB MDI-QSDC protocol. BS: beam splitter; PBS\(_{1}\), PBS\(_{2}\): polarizing beam splitter; \(D_{1},\) \(D_{2},\) \(D_{3},\) and \(D_{4}\) detectors

 Full size image

Alice can choose to leave (does not encode) some random qubits of \(A_{M}\) sequence as it is for the correlation check in the next step. This will ensure the security of the message against Charlie. Alternatively, Alice can divide the decoy Bell qubits into two parts to check the security by GV subroutine using one part and by a correlation check using another part. This strategy would be helpful to trace any bit flip attack as discussed in Section 4.5.

Step 6: Eavesdropping check: After receiving the authenticated acknowledgement of the receipt of all the qubits of \(A_{M}^{\prime \prime }\) and \(B_{M}^{\prime }\) sequences by Charlie, Alice and Bob announce the positions of their decoy Bell pairs in their sequences \(A_{M}^{\prime \prime }\) and \(B_{M}^{\prime }\), respectively. Charlie then measures the decoy Bell pairs in each sequence \(A_{M}^{\prime \prime }\) and \(B_{M}^{\prime }\) separately and announces the corresponding BMO. In the absence of an eavesdropping, Charlie should get each decoy Bell pair in the same state (\(|\psi ^{+}\rangle _{dd'}\)) as his Bell measurement outcome as was initially prepared by Alice and Bob, respectively. In between if Eve tries to eavesdrop and measures the qubits in any of the sequences \(A_{M}^{\prime \prime }\) and \(B_{M}^{\prime }\), being unknown of decoys and message qubits, the decoys Bell pairs will get entanglement swapped with wrong partner particles and any other Bell measurement outcome (\(|\psi ^{-}\rangle _{dd'}, |\phi ^{+}\rangle _{dd'}\) or \(|\phi ^{-}\rangle _{dd'}\)) is the signature of eavesdropping, leading to the detection probability \(75\%\). Alice and Bob compare the decoy Bell measurement outcomes with that of their initial decoy Bell pair preparation and calculate the error rate, they also check the correlation security check on unencoded qubits by Alice, if the error rate is below the threshold value then they continue to the next step, otherwise they discard the protocol and starts afresh.

Step 7: Decoding of message by Bob: After being confirmed there is no eavesdropping, Charlie obtains \(A_{M}^{\prime }\) and \(B_{M}\) sequences and performs the Bell measurement on \(A_{M}^{\prime }\) and \(B_{M}\) sequences and announces his Bell measurement outcomes, using which Bob can decode the secret message encoded by Alice. This is so because, only Bob knows which initial Bell state (qubits 1, 3 of column III of Table 2) has been shared between Alice and Bob after entanglement swapping being performed by Charlie in step 4, which is in accordance to Bob’s initial Bell state preparation of \(|\psi ^{+}\rangle _{34}\) or \(|\psi ^{-}\rangle _{34}\) (column I of Table 2).

This is how Alice sends her secret message to Bob via the help of an untrusted measurement device Charlie, without any information leakage.

Beyond the primary function of securely transmitting messages, which is the fundamental purpose of any QSDC protocol, our OSB MDI-QSDC scheme can, like other MDI-QSDC protocols [31, 32], be adapted to perform additional cryptographic tasks. Specifically, it can be reduced to a key negotiation protocol when Alice encodes randomly generated numbers into quantum states and follows our OSB MDI-QSDC procedure. In this mode, instead of conveying meaningful information, the protocol establishes a shared random key between Alice and Bob. Moreover, our OSB MDI-QSDC protocol can also be reduced to a true key distribution scheme by enabling the transmission of a pre-determined key. In this case, Alice selects a specific key in advance, encodes it into quantum states, and transmits it to Bob via Charlie using our OSB MDI-QSDC procedure. This allows for the secure distribution of a fixed, pre-determined key, distinguishing it from conventional key negotiation. In summary, our OSB MDI-QSDC protocol effectively supports all three functions: secure direct message transmission, quantum key negotiation, and predetermined key distribution. However, converting the reverse—OSB MDI-QKD back into OSB MDI-QSDC—is not possible.

Table 2 Alice prepares her initial Bell state \(|\psi ^{+}\rangle _{12}\) and Bob randomly prepares \(|\psi ^{+}\rangle _{34}\) or \(|\psi ^{-}\rangle _{34}\)

Alice and Bob initial product Bell states (1, 2) and (3, 4)	Charlie’s Bell measurement result on qubits 2, 4 (\(\boldsymbol{A}_{\boldsymbol{E}}\boldsymbol{,} \boldsymbol{B}_{\boldsymbol{E}}\))	Alice and Bob initially shared Bell state after entanglement swapping (only known to Bob) (\(\boldsymbol{A}_{\boldsymbol{M}}\boldsymbol{,B}_{\boldsymbol{M}}\))	Bob’s cover operations {I, X} on \(\boldsymbol{B}_{\boldsymbol{M}}\)	Charlie’s Bell measurement result on message encoded qubits 1, 3 (\(\boldsymbol{A'}_{\boldsymbol{M}}\boldsymbol{,B}_{\boldsymbol{M}}\))	Bob’s decoding of Alice’s encoded unitary operation \(\boldsymbol{U}_{\boldsymbol{j}}\boldsymbol{\epsilon \{I,X,iY,Z\}}\) where \(\boldsymbol{j\epsilon \{0,1,2,3\}}\)
\(|\psi ^{+}\rangle _{12}\otimes |\psi ^{+}\rangle _{34}\)	\(|\psi ^{+}\rangle _{24}\)	\(|\psi ^{+}\rangle _{13}\)	I	\(|\psi ^{+}\rangle _{13}/|\phi ^{+}\rangle _{13}/|\phi ^{-}\rangle _{13}/|\psi ^{-}\rangle _{13}\)	I/X/iY/Z
			X	\(|\phi ^{+}\rangle _{13}/|\psi ^{+}\rangle _{13}/|\psi ^{-}\rangle _{13}/|\phi ^{-}\rangle _{13}\)	X/I/Z/iY
	\(|\phi ^{+}\rangle _{24}\)	\(|\phi ^{+}\rangle _{13}\)	I	\(|\phi ^{+}\rangle _{13}/|\psi ^{+}\rangle _{13}/|\psi ^{-}\rangle _{13}/|\phi ^{-}\rangle _{13}\)	I/X/iY/Z
			X	\(|\psi ^{+}\rangle _{13}/|\phi ^{+}\rangle _{13}/|\phi ^{-}\rangle _{13}/|\psi ^{-}\rangle _{13}\)	X/I/Z/iY
	\(|\phi ^{-}\rangle _{24}\)	\(|\phi ^{-}\rangle _{13}\)	I	\(|\phi ^{-}\rangle _{13}/|\psi ^{-}\rangle _{13}/|\psi ^{+}\rangle _{13}/|\phi ^{+}\rangle _{13}\)	I/X/iY/Z
			X	\(|\psi ^{-}\rangle _{13}/|\phi ^{-}\rangle _{13}/|\phi ^{+}\rangle _{13}/|\psi ^{+}\rangle _{13}\)	X/I/Z/iY
	\(|\psi ^{-}\rangle _{24}\)	\(|\psi ^{-}\rangle _{13}\)	I	\(|\psi ^{-}\rangle _{13}/|\phi ^{-}\rangle _{13}/|\phi ^{+}\rangle _{13}/|\psi ^{+}\rangle _{13}\)	I/X/iY/Z
			X	\(|\phi ^{-}\rangle _{13}/|\psi ^{-}\rangle _{13}/|\psi ^{+}\rangle _{13}/|\phi ^{+}\rangle _{13}\)	X/I/Z/iY
\(|\psi ^{+}\rangle _{12}\otimes |\psi ^{-}\rangle _{34}\)	\(|\psi ^{-}\rangle _{24}\)	\(|\psi ^{+}\rangle _{13}\)	I	\(|\psi ^{+}\rangle _{13}/|\phi ^{+}\rangle _{13}/|\phi ^{-}\rangle _{13}/|\psi ^{-}\rangle _{13}\)	I/X/iY/Z
			X	\(|\phi ^{+}\rangle _{13}/|\psi ^{+}\rangle _{13}/|\psi ^{-}\rangle _{13}/|\phi ^{-}\rangle _{13}\)	X/I/Z/iY
	\(|\phi ^{-}\rangle _{24}\)	\(|\phi ^{+}\rangle _{13}\)	I	\(|\phi ^{+}\rangle _{13}/|\psi ^{+}\rangle _{13}/|\psi ^{-}\rangle _{13}/|\phi ^{-}\rangle _{13}\)	I/X/iY/Z
			X	\(|\psi ^{+}\rangle _{13}/|\phi ^{+}\rangle _{13}/|\phi ^{-}\rangle _{13}/|\psi ^{-}\rangle _{13}\)	X/I/Z/iY
	\(|\phi ^{+}\rangle _{24}\)	\(|\phi ^{-}\rangle _{13}\)	I	\(|\phi ^{-}\rangle _{13}/|\psi ^{-}\rangle _{13}/|\psi ^{+}\rangle _{13}/|\phi ^{+}\rangle _{13}\)	I/X/iY/Z
			X	\(|\psi ^{-}\rangle _{13}/|\phi ^{-}\rangle _{13}/|\phi ^{+}\rangle _{13}/|\psi ^{+}\rangle _{13}\)	X/I/Z/iY
	\(|\psi ^{+}\rangle _{24}\)	\(|\psi ^{-}\rangle _{13}\)	I	\(|\psi ^{-}\rangle _{13}/|\phi ^{-}\rangle _{13}/|\phi ^{+}\rangle _{13}/|\psi ^{+}\rangle _{13}\)	I/X/iY/Z
			X	\(|\phi ^{-}\rangle _{13}/|\psi ^{-}\rangle _{13}/|\psi ^{+}\rangle _{13}/|\phi ^{+}\rangle _{13}\)	X/I/Z/iY

Accordingly, column I shows the two possible product states of Alice and Bob, column II corresponds to the possible BMO on qubits (2, 4) by Charlie, and as a result column III shows the Bell state qubits (1, 3) after entanglement swapping (only known to Bob). Column IV shows the cover operation applied by Bob. Columns V and VI show the relationship between Charlie’s BMO on Alice’s message encoded qubits and Bob’s decoding of unitary operation applied by Alice

Further, our OSB MDI-QSDC protocol is a unidirectional communication in which the information flows in one direction of communication (i.e., from Alice to Bob). It may be interesting to visualize it in bidirectional communication such that the information flows in both the direction of communication (i.e., from Alice to Bob and Bob to Alice) simultaneously using the same quantum channel as happens in the original QD [12].

Before we introduce an OSB MDI-QD protocol, it is to be noticed that the authors introduced an MDI quantum direct dialogue in section 2.3 of [31], where Alice encodes her secret message on her own travel qubits sequence \(M_{A}^{1}\) (for Alice to Bob communication) but Bob does not encode his secret on the corresponding \(M_{B}^{1}\). Similarly, Bob encodes his secret message on his own travel qubits sequence \(M_{B}^{2}\) (for Bob to Alice communication) but Alice does not encode her secret on the corresponding \(M_{A}^{2}\). The nonavailability of simultaneous encodings of both Alice and Bob on the corresponding Bell pairs (i.e., on \(M_{A}^{1},M_{B}^{1}\) and \(M_{A}^{2},M_{B}^{2}\)) while Charlie performs the Bell measurement seems to be different than the original framework of QD protocols [12]. Thus, their MDI quantum direct dialogue rather can be more appropriately described equivalent to the two QSDCs, first QSDC from Alice to Bob using \(M_{A}^{1},M_{B}^{1}\) and second QSDC form Bob to Alice using \(M_{A}^{2},M_{B}^{2}\). Because, when Charlie measures \(M_{A}^{1},M_{B}^{1}\) (\(M_{A}^{2},M_{B}^{2}\)), it only contains the encoding of Alice (Bob) but not of Bob (Alice). So when Charlie measures \(M_{A}^{1},M_{B}^{1}\) (\(M_{A}^{2},M_{B}^{2}\)), both the encodings from Alice and Bob are not available simultaneously on the same quantum channel, which may not fully align with the requirements of the original QD framework [12].

In principle, in a original QD protocols [12], which refers to the situation, where Alice and Bob send their secret messages to each other simultaneously on the same quantum channel in which they both encode their secret messages on the same travel qubit entangled with another kept as home qubit with Bob. However, we consider a protocol as QD, when the two different travel qubits which became entangled (due to entanglement swapping) being encoded by Alice and Bob, respectively. We emphasize that we can consider such protocols as QD (within original framework of QD [12]) even if the two different travel qubits entangled with each other and each travel qubit carries the encoding information. The logic behind is that when the two qubits are entangled then they behave in the same manner regardless of \(U_{B}U_{A}\) being encoded only on the second qubit of \(|\psi ^{+}\rangle _{12}=\frac{|00\rangle _{12}+|11\rangle _{12}}{\sqrt{2}}\) respectively, or \(U_{A}\) and \(U_{B}\) are separately encoded on first and second qubit respectively of \(|\psi ^{+}\rangle _{12}=\frac{|00\rangle _{12}+|11\rangle _{12}}{\sqrt{2}}\). Following the latter trick, we introduce an OSB MDI-QD protocol in Section 3. The only criteria to be within QD is that the combined Bell state should be measured by Charlie only after Alice and Bob apply the operations \(U_{A}\) and \(U_{B}\) respectively on their travel qubits. Hence, both the encodings \(U_{A}\) and \(U_{B}\) are available simultaneously on the same quantum channel. It is to be noted that in a two-party QD protocol [12], it is preferred to apply \(U_{B}U_{A}\) only on the second travel qubit because there are only two parties and one party Bob starts the protocol and receives the travel qubit back himself encoded by Alice. But here in OSB MDI-QD, there are three parties where two authorized parties Alice and Bob separately sending their encoded travel qubits (which become entangled after entanglement swapping in step 4) in step 5 to an unauthorized party Charlie for Bell measurement. Here, the encoded sequences have been measured by Charlie only after Alice and Bob send their sequences \(A_{M}\) and \(B_{M}\) to Charlie after encoding their secret messages. With this motivation, now we introduce our OSB MDI-QD protocol in the next section.

QD protocol is a two-way communication scheme that allows both parties, Alice and Bob, to simultaneously exchange the secret messages on the same quantum channel utilizing a Bell pair [12, 13]. The key advantage of QD is its ability to achieve secure bidirectional communication in a single session. The proposed OSB MDI-QD protocol steps could be outlined as follows:

Step 1: Preparation: Alice prepares n number of the Bell states, i.e., \(|\psi ^{+}\rangle _{12}^{\otimes n}\). She prepares the two ordered sequences of all the first qubits as sequence \(A_{M}\) (on which she is supposed to encode her secret message later) and of all the second qubits as sequence \(A_{E}\) (which is to be used for entanglement swapping with Bob’s \(B_{E}\)). Further, she prepares n number of decoy Bell states \(|\psi ^{+}\rangle _{d_{1}d_{2}}^{\otimes n}\), where d stands for the verification qubits as decoy Bell pairs. She takes \(|\psi ^{+}\rangle _{d_{1}d_{2}}^{\otimes n/2}\) decoy pairs, keeps all \(d_{1}\) decoys with herself, and inserts \(d_{2}\) partner decoys randomly in \(A_{E}\) sequence to obtain an extended \(A_{E}^{\prime }\) sequence. Similarly, Bob also prepares n number of the Bell states randomly in \(|\psi ^{+}\rangle _{34}\) or \(|\psi ^{-}\rangle _{34}\). Further, he performs OSB MDI-QSDC protocol as shown in Section 2 to securely share the exact information of the prepared Bell state. However, Alice does not have to do so because her initial Bell state is fixed as \(|\psi ^{+}\rangle _{12}\) and is a public knowledge. Now, he prepares the two ordered sequences of all the first qubits as sequence \(B_{M}\) and of all the second qubits as sequence \(B_{E}\). Subsequently, he prepares n number of decoy Bell states \(|\psi ^{+}\rangle _{d_{3}d_{4}}^{\otimes n},\) he takes \(|\psi ^{+}\rangle _{d_{3}d_{4}}^{\otimes n/2}\) decoy pairs, keeps all \(d_{3}\) decoys with himself, and inserts \(d_{4}\) partner decoys randomly in \(B_{E}\) sequence to obtain an extended \(B_{E}^{\prime }\) sequence. Alice and Bob keep their rest of the decoy Bell pairs \(|\psi ^{+}\rangle _{d_{1}d_{2}}^{\otimes n/2}\), \(|\psi ^{+}\rangle _{d_{3}d_{4}}^{\otimes n/2}\) separately for the security of the communication of \(A_{M}\) and \(B_{M}\) sequences to Charlie. It is to be noted that all decoys \(d_{2}\) and \(d_{4}\) have been randomly inserted in the communication channel, i.e., each partner particle of a decoy Bell pair has random position in extended sequences \(A_{E}^{\prime }\) and \(B_{E}^{\prime }\) and the actual sequence is known to Alice and Bob, respectively.

Similar to step 1 of OSB MDI-QSDC, Alice and Bob can randomly prepare the decoy Bell pairs in any of the Bell states \(\{|\psi ^{\pm }\rangle _{dd^{\prime }},|\phi ^{\pm }\rangle _{dd^{\prime }}\}\), keeping the decoy state secret and preventing Charlie from announcing a fake Bell measurement outcome.

Step 2: Transmission of \(\boldsymbol{A}_{\boldsymbol{E}}^{\boldsymbol{\prime }}\) and \(\boldsymbol{B}_{\boldsymbol{E}}^{\boldsymbol{\prime }}\) sequences: Alice and Bob keep the sequence \(A_{M}\) and \(B_{M}\) with themselves and send the extended \(A_{E}^{\prime }\) and \(B_{E}^{\prime }\) sequences to Charlie to allow him to perform the Bell measurement that leads to 4 cases as shown in Table 1.

Step 3: Eavesdropping check: Same as step 3 of OSB MDI-QSDC described in Section 2.

Step 4: Entanglement swapping: Same as step 4 of OSB MDI-QSDC described in Section 2.

Step 5: Message encoding by Alice and Bob: Once it is confirmed that there is no eavesdropping or no fake announcements from Charlie, Alice (Bob) discards all the corresponding partner entangled (E) qubits from \(A_{M}(B_{M})\) which contributed to cases II (III) (they do not discard if they decide to use these cases for message coding). After that Alice and Bob start message coding process (on case IV) where Alice holds \(A_{M}\) sequence initially prepared in \(|\psi ^{+}\rangle _{12}\) state whereas Bob holds \(B_{M}\) sequence randomly prepared in \(|\psi ^{+}\rangle _{34}\) or \(|\psi ^{-}\rangle _{34}\) state initially. Both the ordered sequences \(A_{M}\) and \(B_{M}\) are now Bell entangled (i.e., \((A_{M},B_{M})\) pairwise entangled) due to the entanglement swapping in the last step. Hence, after the Bell measurement announcement of \((A_{E},B_{E})\) from Charlie as shown in column II of Table 2, Alice and Bob both know the initial Bell state \(A_{M},B_{M}\) they share as shown in III column of Table 2 according to Eq. 2. Unlike OSB MDI-QSDC, here Alice also know initial Bell state \(A_{M},B_{M}\) because Bob has already executed OSB MDI-QSDC in step 1 to securely share the exact information of the prepared Bell state (\(|\psi ^{+}\rangle _{34}\) or \(|\psi ^{-}\rangle _{34}\)). Now, Alice applies one of the unitary operations \(U_{0}=I,\) \(U_{1}=X,\) \(U_{2}=iY,\) and \(U_{3}=Z\) on the qubits of \(A_{M}\) sequence to encode her 2-bits of classical information 00, 01, 10, and 11, respectively. After encoding her secret messages on \(A_{M}\) sequence, Alice finds an encoded sequence \(A_{M}^{\prime }\), in which she inserts rest of the decoy Bell pairs \(|\psi ^{+}\rangle _{d_{1}d_{2}}^{\otimes n/2}\) randomly and sends an extended message encoded sequence \(A_{M}^{\prime \prime }\) to Charlie. At the same time, Bob also randomly applies one of the unitary operations \(U_{0}=I,\) \(U_{1}=X,\) \(U_{2}=iY,\) and \(U_{3}=Z\) on the qubits of \(B_{M}\) sequence according to his secret message to encode his 2-bits of classical information and gets his encoded sequence \(B_{M}^{\prime }\), then he also inserts rest of the decoy Bell pairs \(|\psi ^{+}\rangle _{d_{3}d_{4}}^{\otimes n/2}\) randomly in \(B_{M}^{\prime }\) sequence and sends an extended sequence \(B_{M}^{\prime \prime }\) to Charlie. It should be noted that here, Alice or Bob do not require applying the cover operations \(\{I,X\}\) [33, 35].

Step 6: Eavesdropping check: This step is the same as step 6 of OSB MDI-QSDC described in Section 2, with the only difference being that in this case, the sequences \(A_{M}^{\prime \prime }\) and \(B_{M}^{\prime \prime }\), obtained from the previous step, will now be checked.

Step 7: Decoding of message by Alice and Bob: After being confirmed there is no eavesdropping, Charlie performs the Bell measurement on \(A_{M}^{\prime }\), \(B_{M}^{\prime }\) message encoded sequences and announces his final Bell measurement outcomes, using which Alice and Bob can decode the secret messages encoded by Bob and Alice, respectively. This is so because Alice (Bob) knows Bob’s (Alice’s) initial Bell state prepared in step 1 for which Bob executed OSB MDI-QSDC as shown in Section 2 to securely share the information about which Bell state (\(|\psi ^{+}\rangle _{34}\) or \(|\psi ^{-}\rangle _{34}\)) that he has prepared initially. However, Alice’s initial Bell state (\(|\psi ^{+}\rangle _{12}\)) is the public knowledge so Bob knows it. Hence, after Bell measurement is performed on qubits 2, 4, resulting in entanglement swapping on qubits 1, 3 and 2, 4 in Eq. 2, Alice and Bob also know the initial Bell state (qubits 1, 3) shared between them in step 4, on which they have encoded their secret messages. Further, they know Charlie’s final Bell measurement result announcement and their own encoding unitary operation. Therefore, they can successfully decode each others secret information and complete the quantum dialogue protocol between them via the help of an untrusted measurement device, Charlie.

Now, we would like to note that there is a special reason why we have selected that Alice prepares \(|\psi ^{+}\rangle _{12}\) and Bob prepares randomly in \(|\psi ^{+}\rangle _{34}\) or \(|\psi ^{-}\rangle _{34}\) as initial Bell state in step 1. Specifically, in Section 4.4, we will show how the number of initial Bell state selection will allow Alice and Bob to reduce the information leakage by 1-bit of classical information in comparison to the standard quantum dialogue protocol [12], where the information leaks by 2-bits on the Bell measurement announcement. Further, we will also show that if Alice also chooses to prepare any two Bell states randomly in \(|\psi ^{+}\rangle _{12}\) or \(|\psi ^{-}\rangle _{12}\) like Bob chooses to prepare randomly in \(|\psi ^{+}\rangle _{34}\) or \(|\psi ^{-}\rangle _{34}\) as initial Bell state in step 1, then the leakage problem can be completely solved, but in such a case, Alice also have to securely share with Bob the exact information of the initial Bell state \(|\psi ^{+}\rangle _{12}\) or \(|\psi ^{-}\rangle _{12}\) prepared in step 1, as was done by Bob, executing the OSB QSDC protocol as shown in Section 2.

Interestingly, in this way, Alice and Bob can ensure that the ignorance of Eve should be equal to the total classical information (4-bits secret messages, i.e., 2-bits by Alice and 2-bits by Bob) transmitted between them simultaneously on the same quantum channel. Basically, as Eve’s ignorance increases, the c-bits information leakage decreases. Therefore, the random preparation of initial Bell states by Alice and Bob in step 1 provides a tradeoff to avoid the conventional information leakage problem in QD protocols. We have shown the details in Section 4.4. However, it is useless for Alice and or Bob to prepare more than any two Bell states randomly, for example, suppose they prepare \(|\psi ^{+}\rangle _{12}\) or \(|\psi ^{-}\rangle _{12}\) and \(|\psi ^{+}\rangle _{34}\), \(|\psi ^{-}\rangle _{34}\) or \(|\phi ^{+}\rangle _{34}\) respectively because in this case, Eve’s ignorance would exceed the maximum requirements of 4-bits in our OSB MDI-QD protocol, so we restrict ourselves to the above two cases, however, such a case might be useful where the Eve’s ignorance requirements are higher than 4-bits.

In the original two-party QD protocols [12], initial and final Bell states are public knowledge, and Alice and Bob know their own encoding so they can deduce each other’s encoding information. However, there exists a partial information leakage problem of 2-bits due to the final Bell measurement announcement, i.e., Eve can extract 2-bits information about the product of unitary operations \(U_{B}U_{A}\) applied by Alice \((U_{A})\) and Bob \((U_{B})\), respectively. Hence, information leakage is an inherent problem in QD protocols. To avoid such a leakage, we used the tricks mentioned and utilized in [46], such that in the first step of our OSB MDI-QD protocol, Bob can use OSB QSDC protocol for sharing information about his initial Bell state (which he randomly prepared in \(|\psi ^{+}\rangle _{34}\) or \(|\psi ^{-}\rangle _{34}\)). This strategy of random preparation of Bell states by Bob would help to increase the ignorance of Eve, thereby reducing the information leakage.

In this section, we have analyzed the security of the two proposed protocols under the following possible eavesdropping attacks.

4.1 Security of OSB MDI-QSDC protocol

Since Charlie is an untrusted third party responsible for measurement, he effectively plays the role of Eve in the security analysis. To decode the secret message of Alice, Charlie or Eve must have to know the initial Bell state shared between Alice and Bob (on which Alice is supposed to encode her secret messages) which is obtained by them after the entanglement swapping. Basically, if the initial Bell states prepared by both Alice and Bob are known to Charlie/Eve, then after the entanglement swapping performed by Charlie, he/she can get the knowledge of new born Bell states (qubits 1, 3) and can decode the secret message at the end. However, Eve’s attempt to try knowing that new born initial Bell state (1, 3) fails because Bob has prepared his initial Bell state randomly in one of the two \(|\psi ^{+}\rangle _{34}\) or \(|\psi ^{-}\rangle _{34}\) Bell states (unknown to Charlie/Eve). As soon as Charlie has performed the Bell measurement on qubits (2, 4), which results into entanglement swapping on qubits (1, 3) as shown in Eq. 2. After that Charlie/Eve can never verify the exact initial Bell state shared between Alice and Bob and they end up with the two possible product state equally probable due to the random preparation of the initial Bell state by Bob as shown in Eq. 2. Further, any attempts of eavesdropping by Charlie/Eve will disturb the maximal entanglement correlation between Alice and Bob, and will be traced out by Alice and Bob, where the security would arise from monogamy of entanglement [43]. All kinds of fake particle attacks or entangle-and-measure attack will be detected during the correlation security and eavesdropping checks performed in steps 3 and 6 in Section 2.

4.2 Intercept-and-resend attack

If Eve applies an intercept-and-resend attack to our OSB MDI-QSDC, she prepares her own Bell state, intercepts Bob’s qubit from the extended \(B_{E}^{\prime }\) sequence during its transmission to Charlie (in step 2), and sends one qubit of her fake Bell state to Charlie. Eve aims for her fake Bell state to undergo entanglement swapping (in step 4) with Alice’s qubit sequence \(A_{M}\), on which Alice will later apply her secret encoding operation (in step 5). Since Alice’s initial Bell state \(|\psi ^{+}\rangle _{12}\) is publicly known, Eve plans to deduce Alice’s secret information once Charlie announces his Bell measurement results in step 7. However, this attack can be detected as early as step 3 under case I, when Alice and Bob perform correlation checks based on Charlie’s Bell measurement outcomes. Any attempted intercept-resend attack by Eve will break the correlation, which ensures security against both Eve and Charlie. After entanglement swapping in step 4, the initial Bell state shared between Alice and Bob is unknown to Eve, hence it is meaningless for Eve to apply this attack in step 5, as she cannot decode the message without the knowledge of initial Bell state being shared. The same eavesdropping detection strategy works for our OSB MDI-QD protocol.

4.3 Entangle-and-measure attack

In the entangle-and-measure attack, Eve prepares one or more ancilla qubits, either in a pure state like \(|0\rangle\) or a superposition state \(|p\rangle =\alpha |0\rangle _{e}+\beta |1\rangle _{e}\). She then entangles this ancilla qubit with the travel qubit being transmitted from Alice (or Bob separately) to Charlie via a unitary operation, typically a controlled-NOT (CNOT) gate. The goal of this attack is to allow Eve to extract information about Alice’s qubits (or Bob’s qubits) by measuring her entangled ancilla qubit at a later stage, without directly interfering with the main communication process. In step 1 of the proposed protocols, as Alice (and Bob separately) prepares a decoy Bell state \(|\psi ^{+}\rangle _{dd^{'}}=\frac{1}{\sqrt{2}}\left( |00\rangle +|11\rangle \right) _{ht}\), (\(d\epsilon 1,3;d^{'}\epsilon 2,4\)) keeping the home qubit (h) and sending the travel qubit (t) in her extended \(A_{E}^{\prime }\) sequence (Bob’s \(B_{E}^{\prime }\) sequence) to the Charlie. Eve, with her ancilla qubit, say \(|p\rangle =\alpha |0\rangle _{e}+\beta |1\rangle _{e}\), applies a CNOT gate, with target on the t qubit and control on her ancilla qubit \(|p\rangle .\) After this operation, the resulting composite state becomes:

A widely used metric for evaluating the efficiency of secure quantum communication protocols is qubit efficiency [57], defined as

MDI-QSDC protocols are designed to eliminate security vulnerabilities tied to imperfections in the measurement devices used in quantum communication protocols. These vulnerabilities, such as side-channel attacks, are common in traditional setups, where the eavesdropper can exploit weaknesses in detectors or measurement systems. Technically, MDI-QSDC achieves this by utilizing Bell state measurements and entanglement swapping. Our innovative protocols utilize the unique resources to effectively eliminate security vulnerabilities associated with Charlie’s measurement devices. Additionally, they significantly enhance the range of secure direct message transmission, achieving double the distance for secure direct message transmission compared to conventional quantum communication methods. We proposed two OSB protocols of MDI-QSDC and MDI-QD protocols that are fundamentally distinct from conventional conjugate-coding methods, offering unconditional security derived from the monogamy of entanglement [40, 43]. Further, we conducted security analysis of our protocols, evaluating their robustness against key quantum attacks like intercept-and-resend, entangle-and-measure, flip, and disturbance or denial-of-service attacks. We also demonstrated the resilience of the proposed OSB MDI-QD protocol, particularly in mitigating information leakage and ensuring the integrity of quantum communication channels. This intrinsic security feature arises because the correlations shared by legitimate parties exclude any potential eavesdropper, making OSB protocols highly robust against various quantum attacks [43]. Specifically, the proposed OSB MDI-QSDC and OSB MDI-QD protocols contribute to the growing body of work in MDI-QSDC by exploring alternative quantum mechanical resources beyond HUP for ensuring unconditional security. These protocols establish that HUP is not the only mechanism capable of providing unconditional security in quantum communication, opening the door for further research into different foundational principles. The main advantages of our proposed protocols are as follows: Firstly, OSB protocols represent a distinct class in quantum cryptography where orthogonal quantum states are used securely by exploiting deep quantum properties beyond uncertainty, offering alternative routes to quantum security that can be more resilient in realistic or device-imperfect scenarios. Secondly, conventional MDI QSDC protocols use single-qubit decoys randomly prepared in \(\left\{ |0\rangle ,|1\rangle \right\}\) and \(\left\{ |+\rangle ,|-\rangle \right\}\) bases, which underperform in comparison to the Bell decoys states in the collective noisy environment [42]. In such a practical noisy environment, the conventional MDI QSDC protocols face double challenges dealing with two separate noisy communication channels, i.e., Alice-Charlie and Bob-Charlie. However, in this noisy environment, our OSB MDI QSDC protocol uses Bell decoy states, leveraging their advantage of the decoherence-free subspace, and outperforms the single-qubit decoys used in conventional MDI protocols. This would apparently reduce the effective noise (or noise impact) on the two noisy communication channels compared with conventional MDI QSDC protocols while doubling the communication distance. Thirdly, decoy Bell states retain a significant advantage over single-qubit decoys in noisy environments. Their inherent quantum correlations allow for entanglement-based verification techniques—such as Bell inequality tests, parity checks and fidelity checks—that can differentiate natural decoherence from eavesdropping-induced disturbances. Moreover, certain Bell states may form decoherence-free subspaces under symmetric noise models, further enhancing robustness. In contrast, single-qubit decoys lack such structure, making them more vulnerable to indistinguishable effects of noise and attack. Fourthly, other than noise resiliency, another major advantage of OSB MDI-QSDC protocol is the higher detection probability of eavesdropping, i.e., 75%, compared to 50% in the standard MDI-QSDC protocol, as reported in [31, 32]. The 75% detection probability in our protocol is due to the fact that we use a single Bell state as a decoy state, and any variation in the measurement outcomes of Charlie from this expected state leads to an error. As there are three possibilities for causing error corresponding to the remaining three Bell states out of four, an error detection probability of 75% can be realized.

Subsequently, we calculate the efficiency of our OSB MDI-QSDC and QD protocols and compare them with standard versions of MDI-QSDC protocols. Further, we discuss system and operational complexity of our OSB MDI-QSDC protocol in light of experimental elements and the processes. Another significant motivation is that the OSB secure quantum communication protocols outperform under certain noisy environment in comparison to the conjugate-coding-based secure quantum communication protocols [42]. It remains the future prospects of our research direction that is to investigate the scope of decoherence free subspace for the variety of noises including non-Markovian noise aligning with the recent work [27]. Moreover, it would be of wider interest to investigate and compare the effect of various noisy channels on our OSB MDI-QSDC and OSB MDI-QD protocol and MDI-QSDC and MDI-QD protocols given [31, 32], which is under the scope of upcoming work.
