Topological Modes Unshackled

writerGuancong Ma

Vol.32 (Dec) 2022 | Article no.40-1 2022

Topological matters have been a focus of research across many realms of physics, ranging from quantum electronics [1, 2] and photonics [3], to classical systems such as acoustics and mechanics [4]. Such a long-lasting interest owes not only to the physical and mathematical elegance in the theories for topological matters but also to the immense practical possibilities of topological modes. These topological modes are robust against disorders because their existence is protected by the topology of the bulk energy bands—global properties of the Bloch wavefunctions that are insensitive to many local perturbations in the lattice. In addition, topological modes can become unidirectional transfer channels that are immune to backscattering, making them ideal for energy or information transfer applications.

However, we all know well that there is no free lunch in the world. A price has to be paid in order to access the fantastic properties of topological modes. All topological modes are localized modes in character, i.e., their wavefunctions are maximum at boundaries or defects of a lattice and the wavefunctions exponentially decay toward the bulk. Thus, to access a topological mode, one has to build a lattice that spans at least one additional spatial dimension. Some even regard this to be the “Achilles’ heel” of topological matters, for any device relying on topological modes must be bulky in size and costly to produce.

In a recent work, physicists at Hong Kong Baptist University leveraged non-Hermitian skin effects to turn the wavefunctions of topological modes into a fully extended mode across the entire lattice, effectively “unshackling” them from the boundary [5]. This breakthrough broadens and deepens the current understanding of the topological modes and their application potentials.

Non-Hermitian skin effects, in a recent discovery, tie non-Hermitian degrees of freedom with band topology. Traditionally, quantum mechanical systems are described by Hermitian operators because they produce a real spectrum and an orthonormal set of eigenvectors, which are desirable mathematical properties for describing close systems, in which energy and probabilities are conserved. In contrast, non-Hermitian operators generically have complex-value eigenvalues, making them useful in describing some scenarios in which a system is “open,” i.e., a system that exchanges energy with its surroundings [6, 7]. Physicists have found that when considering the non-Hermitian skin effect in the contexts of topological matters, the bulk-boundary correspondence, which allows the prediction of topological transitions by considering only a single unit cell under the periodic boundary condition, no longer gives sensible results [8,9,10]. Instead, in the presence of open boundaries, the wavefunctions of the majority of the bulk modes appear to “pile up” at an open boundary, becoming “skin modes.” In other words, it turns out Bloch wavefunctions can no longer predict the open-boundary wavefunctions of the bulk modes. Hence, there is no reason bulk-boundary correspondence should hold.

Wang et al. demonstrated in their work that similar physics can conversely be used to modify the wavefunctions of topological modes [5]. Non-Hermiticity is introduced as non-reciprocal hopping between unit cells, i.e., δx in Fig. 1a. And when the conditions are right, it can entirely counter the exponential decay of the topological modes in the bulk lattice, rendering the topological modes extended (Fig. 1b). Wang et al. also showed that the topological modes can even morph into almost arbitrary shapes by engineering the distribution of the non-Hermiticity. These results challenge the common belief that the topological modes are always localized at the boundaries of the system or the defects. The said effects are successfully realized in non-Hermitian mechanical lattices.

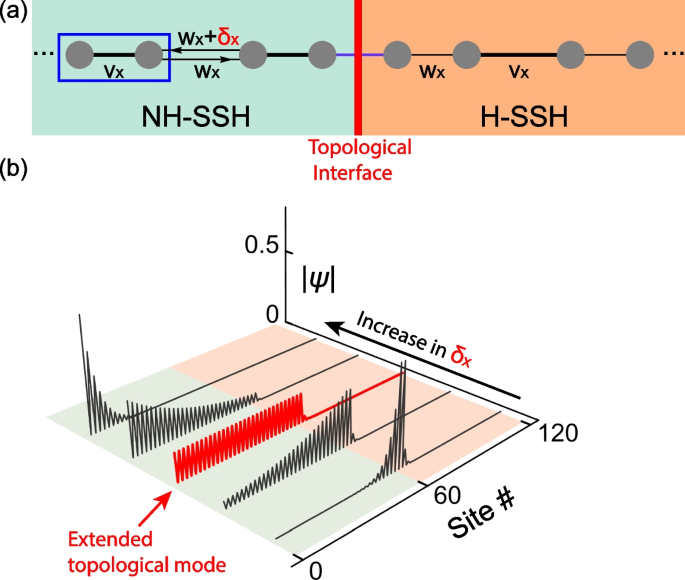

Fig. 1
figure 1

a A one-dimensional topological interface (red line). The left part (green) is topologically trivial but is non-Hermitian, where the non-reciprocal hopping term δx is responsible for the non-Hermiticity. The right part (orange) is topological and Hermitian. Here, the hopping terms are |vx| > |wx|. b The magnitude of the wavefunction of the topological mode is denoted as |ψ|. The localization property of the topological mode is drastically affected by δx. It can be fully extended in the non-Hermitian half chain (red)

The underlying physics of reshaping the topological modes is general because both the non-Hermitian skin effect and topological matters are realizable in many realms. We envision that these results may empower a wide range of topological applications, e.g., large-area single-mode topological lasers and coherent topological beam splitters.


  1. M.Z. Hasan, C.L. Kane, Colloquium: Topological insulators. Rev. Mod. Phys. 82, 3045 (2010)

  2. F.D.M. Haldane, Nobel lecture: Topological quantum matter. Rev. Mod. Phys. 89, 040502 (2017)

  3. T. Ozawa et al., Topological photonics. Rev. Mod. Phys. 91, 015006 (2019)

  4. G. Ma, M. Xiao, C.T. Chan, Topological phases in acoustic and mechanical systems. Nat. Rev. Phys. 1, 281 (2019)

  5. W. Wang, X. Wang, G. Ma, Non-Hermitian morphing of topological modes. Nature 608, 50 (2022)

  6. C.M. Bender, Making sense of non-Hermitian Hamiltonians. Rep. Prog. Phys. 70, 947 (2007)

  7. Y. Ashida, Z. Gong, M. Ueda, Non-Hermitian physics. Adv. Phys. 69, 249 (2020)

  8. S. Yao, Z. Wang, Edge states and topological invariants of non-Hermitian systems. Phys. Rev. Lett. 121, 086803 (2018)

  9. N. Okuma, K. Kawabata, K. Shiozaki, M. Sato, Topological origin of non-Hermitian skin effects. Phys. Rev. Lett. 124, 086801 (2020)

  10. K. Ding, C. Fang, G. Ma, Non-Hermitian topology and exceptional-point geometries. Nat. Rev. Phys. 4, 745–760 (2022)
