Status on lattice calculations of the proton spin decomposition

writerKeh-Fei Liu

Vol.32 (Apr) 2022 | Article no.8 2022

Abstract

Lattice calculations of the proton spin components is reviewed. The lattice results of the quark spin from the axial-vector current matrix element at ∼ 0.3−0.4 is smaller than those from the constituent quark models. This is largely due to the fact that the vacuum polarization contribution from the disconnected insertion is negative. Its connection with the anomalous Ward identity is clarified and verified numerically. This resolves the contentious issue in the “proton spin crisis.” The glue spin and angular momentum are found to be large and there is notable contribution from the quark orbital angular momentum. Renormalization, mixing, and normalization of the quark and glue angular momenta are discussed. With sufficient precision, they can be compared with more precise experimental measurements when the electron-ion collider facility is available.

Introduction

Prior to the advent of quantum chromodynamics (QCD), the structure and mass of hadrons are delineated by the SU (6) non-relativistic quark model. Much like the other non-relativistic systems, where the total spins of atoms and nuclei are the vector sums of the spins and orbital angular momenta of their constituents, the spin of the proton is from the sum of the spins of the three valence quarks (uud) in the quark model. Thus, it came as a total surprise when it was found in the deep inelastic scattering (DIS) EMC experiment of polarized muon on polarized proton that the quark spin contributes very little to the proton spin (ΔΣ(Q2=10 GeV2)=0.060±0.047±.069) [1–3]. The integral of the EMC result on the singlet structure function g1(x,Q2) over x deviates significantly from the Ellis-Jaffe sum rule [4] which is based on the constituent quark model picture. Since this discovery has upended the conventional wisdom at the time, it has sparked spirited discussions and debates. In view of the theoretical quandary and the lack of consensus in the community, this has been dubbed the “proton spin crisis.” The central issue of contention resides on the interpretation of the experimental result—whether the experimental result is measuring the quark spin alone or the combination of the quark and glue spins. This originated from the implication of the anomalous Ward identity (AWI) which, for the flavor-singlet case, involves a glue topological density term. As will be explained later in Sec. 3, this issued is resolved by the lattice calculation.

Since the quark spin contribution does not saturate the proton spin (the latest global analysis of experiments give the quark spin at the ∼ 30% level [5–7]), this raises the question as to where the rest of the proton spin resides. The obvious candidates include glue spin, quark orbital angular momentum, and glue orbital angular momentum. A number of experimental efforts have been carried out or planned to search for these components. These include the polarized pp experiment at RHIC to extract glue helicity [8–10], the deeply virtual Compton scattering (DVCS) and deeply virtual meson production (DVMP) experiments at the JLab [11], HERMES [12] and COMPASS [13] to extract quark orbital angular momentum from the measured GPD. Future experiments at the electron ion collider (EIC) [14, 15] will have larger kinematic coverage to go to smaller x and will improve the measurements of quark spin, glue spin and orbital angular momenta.

There are reviews of the proton spin the readers may wish to consult [16–23]. In the present review, we shall concentrate on the lattice calculations of the proton spin components – quark spin, glue spin, quark orbital angular momentum, and glue angular momentum.

Decomposition of the proton spin and momentum

The decomposition of the proton spin and momentum in terms of the quark and glue contributions can be defined from the forward matrix elements of the QCD energy-momentum tensor. There are, in principle, infinite ways to define the decomposition. A meaningful decomposition will depend on whether each component in the division can be measured experimentally, and it would be desirable that they can be calculated on the lattice with either local or non-local operators.

There are two major formulations of the decomposition. One is the Jaffe-Manohar decomposition [24]

\( J = \frac{1}{2} \Delta \Sigma + L_{q}^{JM} + \Delta{G} + L_{G}, \)
(1)

where \( \frac {1}{2} \Delta \Sigma /\Delta {G}\) is the quark/glue spin contribution, and \(L_{q}^{JM}/L_{G}\) is the quark/glue orbital angular momentum (OAM) contribution. This is derived from the canonical energy-momentum tensor in the light-cone frame with A+=0 gauge. Thus, this is superficially gauge dependent and is also frame dependent. Furthermore, while ΔG can be extracted from high energy experiments, it had been thought that it cannot be obtained from a matrix element based on a local operator. This has posed a challenge for the lattice approach for many years. We will visit this issue in Sec. 4.

Another one is the Ji decomposition [25]

\( J = J_{q} + J_{G} = \frac{1}{2} \Delta \Sigma + L_{q}^{Ji} + J_{G}, \)
(2)

where \( \frac {1}{2} \Delta \Sigma \) is the same quark spin contribution as in Eq. (1), \(L_{q}^{Ji}\) is the quark OAM, and JG is the glue angular momentum (AM). This is derived from the energy-momentum tensor (EMT) in the Belinfante form and each term in Eq. (2) is gauge invariant and frame-independent and can be calculated on the lattice with local operators.

The intriguing difference between these two decompositions and their respective realization in experiments have perplexed the community for quite a number of years. The partonic picture of the glue spin ΔG from the gluon helicity distribution [26] and orbital angular momentum (OAM) are naturally depicted in the light-front formalism with ΔG extractable from high energy pp collision and OAM from generalized parton distributions (GPDs) and the Wigner distribution (generalized transverse momentum distributions distribution (GTMD)) [27–30]. Unfortunately, the light-front coordinates are not accessible to lattice QCD calculation since the latter is based on Euclidean path-integral formulation. To bridge the gap between the light-front formulation and the lattice calculation, it is shown [31] that the matrix elements of appropriate equal-time local operator, when boosted to the infinite frame, is the same as those of the gauge-invariant but non-local operator from the light-cone gluon helicity distribution [26]. The proof was first carried out for the glue spin ΔG [31] with the local operator \(\vec {E} \times \vec {A}_{\text {phys}}\), where \(\vec {A}_{\text {phys}}\) is the gauge-invariant part of the gauge potential Aμ and satisfies the non-Abelian transverse condition \(\mathcal {D}^{i} A_{\text {phys}}^{i} \equiv \partial ^{i} A_{\text {phys}}^{i} -ig[A^{i}, A_{\text {phys}}^{i}] = 0\). This is like the transverse gauge-invariant part of the gauge potential A⊥ in QED. Similar proofs for the \(L_{q}^{JM}\) and LG as defined from the generalized transverse momentum distribution (GTMD) are derived with local operators. [32]. It is further shown that the proof for ΔG in the Coulomb gauge [31] can be generalized to temporal and axial gauges [33].

After the usual continuum extrapolation of the lattice results at large but finite momenta in the \(\overline {\text {MS}}\) scheme at μ, a large momentum effective field theory (LaMET) [31, 34, 35], which takes care of the non-commuting UV and Pz→∞ limits, is suggested to match them to those measured on the light-front.

A comparison to QED is in order. Many years of the experimental study of paraxial light beam on matter has been able to distinguish the different manifestation of the spin and OAM of the beam from the radiation-pressure force (a measure of OAM) and the torque (a measure of spin) on the probed dipole particle [36]. The separation of spin and OAM is based on the canonical energy-momentum tensor in the physical Coulomb gauge. As we learned earlier, this separation is frame dependent. Since the light is always in the light-front frame, it is the natural frame to define the spin and OAM of the optical beam. Likewise, boosting the proton to the infinite momentum frame makes the weakly interacting gluon partons in the proton at high energy behave like the photons in the light beam. The transverse size of the proton, analogous to the width of the light beam, admits the existence of OAM of the gluons in the fast-moving proton.

Quark spin and anomalous Ward identity

Ever since the emergence of the “proton spin crisis,” it is incumbent upon lattice QCD, the ab initio calculation, to shoulder the task of understanding the origin of the paltry quark spin contribution. The quark spin contribution can be obtained from the nucleon matrix element of the flavor-singlet axial-vector current

\( \langle p,s| A_{\mu}^{0}|p,s \rangle = s_{\mu}\, g_{A}^{0}, \)
(3)

where \(A_{\mu }^{0} = \sum _{f = u,d,s}\overline {\psi }_{f} \,i \gamma _{\mu } \gamma _{5} \psi _{f}\) is the flavor-singlet axial-vector current. sμ is the polarization vector and \(g_{A}^{0} = \Delta \Sigma = \Delta u + \Delta d + \Delta s\) is the quark spin contribution of the u,d and s quarks. \(\langle p,s|p',s\rangle = 2E_{p} V \delta _{\vec {p},\vec {p'}}\) gives the normalization of the nucleon state. It involves two parts in the lattice calculation. One is the connected insertion (CI), illustrated in the left panel of Fig. 1 where the current is hooked on the quark line between the source and the sink of the nucleon interpolation fields. Another is the disconnected insertion (DI) where the current is coupled to the quark loop which is a vacuum polarization contribution (N.B. Only the correlated part between the loop and the nucleon propagator is included. The uncorrelated part is subtracted.) This is illustrated in the right panel of Fig. 1. The strange quark only contributes to the DI. The DI is the most numerically challenging part of the lattice calculation. This is usually calculated with the noise estimator [37].

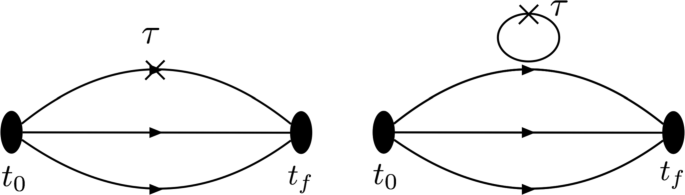

Fig. 1
figure 1

Three-point function to obtain the nucleon matrix element. Left panel: quark skeleton diagram for the connected insertion (CI) where the current is inserted in the quark propagator between the source at t0 and the sink at tf for the nucleon. Right panel: disconnected insertion (DI) where the current is inserted to the quark loop which gives the vacuum polarization contribution. The strange quark only contributes in the DI


The first lattice calculations with the quenched approximation (without dynamical fermion effects from the fermion determinant) [38, 39] already revealed that the disconnected insertion (vacuum polarization) in the right panel of Fig. 1 is negative which reduces that of the CI to make the total smaller than the predicted \(g_{A}^{0} = \frac {3}{5} g_{A}^{3} = 0.764\) from the quark model taking the isovector \(g_{A}^{3} = 1.2723(23)\) from the muon weak scattering experiment. Over the years, dynamical fermion calculations with physical pion mass, and systematic errors such as continuum and infinite volume limits are beginning to be under control. For a recent compilation and evaluation of lattice calculations of Δu,Δd, and Δs, one can consult the FLAG Review 2019 [40]. Here we give a comparison of three recent calculations (Cyprus group [41], χQCD [42], and PNDME [43]) which have taken into account of multiple lattices at different lattice spacings with light pion masses, some are at the physical one. They represent the state-of-art calculations on the quark spin contributions for different flavors. They are listed together with those extracted from experiments.

The total quark spin is composed of contributions from the u,d and s quarks.

\(\begin{array}{@{}rcl@{}} \Delta \Sigma &= & \Delta u +\Delta d + \Delta s, \\ &=& \Delta (u+d) (\text{CI}) + \Delta (u+d) (\text{DI}) + \Delta s, \end{array} \)
(4)

where Δ(u+d)(CI) and Δ(u+d)(DI) are the spins of the u and d quarks in the connected insertion (CI) and disconnected insertion (DI). Δs is the spin of the strange quark. We see that the errors from the lattice calculations are still relatively large, but they are consistent with each other. They share the same feature in that the DI is negative for all the flavors (i.e., Δ(u/d)(DI)) for either u or d and Δs) which is the reason that the total \(g_{A}^{0} \sim 0.3 - 0.4\) is smaller than its CI value of ∼ 0.6 (see Table 1). The lattice calculation of \(g_{A}^{0}\) requires renormalization and normalization. The non-perturbative renormalization and normalization using the anomalous Ward identity (AWI) are carried out in the calculation of χQCD [42].

Table 1 Results of quark spin for the u,d and s flavors from three recent lattice calculations by the Cyprus group [41], χQCD[42], and PNDME [43] in the \(\overline {\text {MS}}\) scheme at 2 GeV are listed. Δ(u+d)(CI) and Δ(u+d)(DI) are the spins of the u and d quarks in the connected insertion (CI) and disconnected insertion (DI). Three analyses of experiments from de Florian et al. [5], NNPDF [6], and COMPASS [44] are also listed for comparison

  Δu Δd Δs \(g_{A}^{3}\) Δ(u+d)(CI) Δ(u/d)(DI) ΔΣ
Cyprus 0.830(26)(4) -0.386(16)(6) -0.042(10)(2) 1.216(31)(7) 0.598(24)(6) -0.077(15)(5) 0.402(34)(10)
χQCD 0.846(18)(32) -0.410(16)(18) -0.035(8)(7) 1.256(16)(30) 0.580(16)(30) -0.072(12)(15) 0.401(25)(37)
PNDME 0.777(25)(30) -0.438(18)(30) -0.053(8) 1.218(25)(30)    0.286(62)(72)
de Florian et al. (Q2=10 GeV2) \(0.793^{+0.011}_{-0.012}\) \(-\thinspace 0.416^{+0.011}_{-0.009}\) \(-\thinspace 0.012^{+0.020}_{-0.024}\)     \(0.366^{+0.015}_{-0.018}\)
NNPDFpol1.1 (Q2=10 GeV2) 0.76(4) -0.41(4) -0.10(8)     0.25(10)
COMPASS (Q2=3 GeV2) [0.82,0.85] [−0.45,−0.42] [−0.11,−0.08] 1.22(5)(10)    [0.26,0.36]

As we explained in Sec. 1, to resolve the issue in the “proton spin crisis,” one needs to reconcile with the AWI

\( \partial_{\mu} A_{\mu}^{0} = \sum_{f = u,d,s} 2m_{f} P_{f} - 2i N_{f} q, \)
(5)

where Pf is the pseudoscalar density and q is the topological charge density operator. The AWI relation is examined in Ref. [42, 45, 46] where the overlap fermion is used. Overlap fermion is a chiral fermion that satisfies AWI on the lattice at finite lattice spacing [47]. It is shown numerically that the nucleon matrix elements for Eq. (5) is separately satisfied for the CI and DI [42]. Therefore, the DI part of \(g_{A}^{0}\) equals the combined results of the DI of Pf and q on the right-hand-side of Eq. (5). In order to calculate the matrix elements in the AWI, one needs to perform a calculation at finite momentum transfer \(\vec {q}\) and extrapolate the form factor to \(\vec {q} \rightarrow 0\). Such a lattice calculation of the AWI matrix elements has been carried out at mπ=330 MeV [46]. It is found that the forward topological charge matrix element is ∼ 0.15 for each flavor, which is quite large. The pseudoscalar matrix element is negative with larger magnitude so that the sum of Pf and q in the DI is negative for each flavor. They are equal to Δ(u/d)(DI) and Δs as listed in Table 1. This proves that the topological charge contribution is part of the quark spin. This settles the ‘proton spin crisis’ debate as to whether the topological charge contribution is part of the quark or the glue spin.

Glue spin

The recent analyses [6, 48] of the high-statistics 2009 STAR [9] and PHENIX [10] experiments at RHIC showed evidence of non-zero glue helicity in the proton, Δg. At Q2=10 GeV2, the glue helicity distribution Δg(x,Q2) is found to be positive and away from zero in the momentum fraction region 0.05≤x (specifically 0.05≤x≤0.2, the region in which RHIC can determine Δg(x) much better than the other regions). However, the results have very large uncertainty in the region x≤0.05.

Following the suggestion of calculating ΔG on the lattice as discussed in Sec. 2, a lattice calculation is carried out with the local operator \(\vec {S}_{G} = \int d^{3} x\, Tr (\vec {E}\times \vec {A}_{\text {phys}})\), where \(\vec {A}_{\text {phys}}\) transforms covariantly under the gauge transformation and satisfies the non-Abelian transverse condition, \(\mathcal {D}^{i} A_{\text {phys}}^{i} = 0\) [49]. It is shown on the lattice [32] that \(A_{\text {phys}}^{i}\) is related to \(A_{c}^{i}\) in the Coulomb gauge via a gauge transformation, i.e. \(A_{\text {phys}}^{\mu }(x) = g_{c} (x) A_{c}^{\mu } g_{c}^{-1}(x) + \mathcal {O}(a)\), where gc is the gauge transformation which fixes the Coulomb gauge. As a result, the glue spin operator

\( \vec{S}_{G} = \int d^{3} x\, Tr (\vec{E}\times \vec{A}_{\text{phys}}) = \int d^{3} x\, Tr (\vec{E}_{c}\times \vec{A}_{c}). \)
(6)

can be calculated with both \(\vec {E}\) and \(\vec {A}\) in the Coulomb gauge. A lattice calculation with the overlap fermion is carried out on 5 lattices with 4 lattice spacings and several sea quark masses including one corresponding to the physical pion mass. The result, when extrapolated to the infinite moment limit, gives ΔG=0.251(47)(16) [45] which suggests that the glue spin contributes about half of the proton spin. However, there is a caveat. it is found that the finite piece in the one-loop large momentum effective theory (LaMET) matching coefficient is quite large which indicates a convergence problem for the perturbative series even after one re-sums the large logarithms. This renders the LaMET matching at current stage not applicable. In this sense, the glue helicity calculation on the lattice is not completed.

Another approach is to calculate the polarized glue distribution function Δg(x) through the quasi-PDF approach [50] and take the first moment to obtain ΔG. The large gauge noise in this approach poses a challenge.

Orbital angular momentum (OAM)

The Jaffe-Manohar quark and glue orbital angular momenta (\(L_{q}^{JM}\) and LG) can be defined through the form factor F14 of the Wigner distribution function (generalized transverse momentum distribution (GTMD)) [51–53]. They can be calculated on the lattice with local operators in the nucleon at large momentum and matched to the infinite momentum frame with LaMET [32] as is the case for the glue spin discussed in Sec. 4. They can also be calculated directly from GTMD with non-local operators [54, 55]. The Ji’s quark OAM \(L_{q}^{Ji}\) can be calculated with the non-local operator in GTMD [54, 55] and can also be obtained from the gravitational form factors of the EMT. The latter will be discussed in Sec. 6. In the approach of Ref. [54, 55], the longitudinal OAM L3 for the u and d quarks with number n is defined on the lattice as

\( \frac{L_{3} }{n} = \frac{1}{a} \epsilon_{ij} \left. \frac{\frac{\partial }{\partial \Delta_{T,j} } \left(\Phi (a\vec{e}_{i}) - \Phi (-a\vec{e}_{i}) \right) }{ \Phi (a\vec{e}_{i}) + \Phi (-a\vec{e}_{i})} \right|_{\Delta_{T} =0} \)
(7)

with the proton matrix element defined as

\( {\displaystyle \begin{array}{cc}\varPhi \left({z}_T\right)& \kern0.3em =\kern0.3em \Big\langle P\kern0.3em +\kern0.3em {\varDelta}_T/2,S\kern0.3em =\kern0.3em {\overrightarrow{e}}_3\mid \overline{\psi}\left(-{z}_T/2\right){\gamma}^{+}U\left[\kern0.3em -{z}_T/2,{z}_T/2\right]\\ {}\kern1em \psi \left({z}_T/2\right)\mid P-{\varDelta}_T/2,S={\overrightarrow{e}}_3\Big\rangle \kern1em .\end{array}} \)
(8)

where \(\vec {e}_{3}/\vec {e}_{i} \) is the unit vector in the longitudinal/transverse direction. The momentum transfer ΔT and the spatial separation zT are in the transverse directions and orthogonal to each other. U is a Wilson line connecting the quark fields at zT/2 and −zT/2. If it is a straight line link, it leads to the Ji’s OAM. On the other hand, if one uses a staple-shaped link U≡U[−z/2,ηv−z/2,ηv+z/2,z/2] with v in the spatial direction and η specifies the length of the staple, the Jaffe-Manohar OAM is realized at η→∞. The direction of v is characterized in a Lorentz invariant parameter \(\hat {\zeta } = \frac {v\cdot P}{\sqrt {|v^{2} |} \sqrt {P^{2}}}\), which needs to be large to approach the light-cone frame. With vT=0 and \(v\equiv -\vec {e}_{3} \), \(\hat {\zeta } = P_{3} /m\) (where m is the proton mass). This implies that a large proton momentum component P3 is needed to reach a large \(\hat {\zeta }\). The partial derivative with respect to ΔT,j and the finite difference of \(\Phi (a\vec {e}_{i}) - \Phi (-a\vec {e}_{i})\) in Eq. (7) amounts to defining the longitudinal OAM as \(\vec {L}_{3} = \vec {b}_{T} \times \vec {k}_{T} \) of the quarks in the proton, where bT is the quark impact parameter and kT the quark transverse momentum. The Φ factor in the denominator in Eq. (7) cancels the Collins-Soper soft factor in the numerator and serves to normalize L3.

There is a recent lattice calculation on both the Ji OAM and Jaffe-Manohar OAM [55]. It is based on the 2+1-flavor clover fermion ensemble with mπ=317 MeV. It calculated the Ji OAM for the isovector u−d quarks from the GTMD in Eq. (7) with the U-link being a straight Wilson line connecting the quark fields in Eq. (8). It is plotted as a function of \(\hat {\zeta }\) in Fig. 2a. Since Ji OAM is boost-invariant, it is independent of \(\hat {\zeta }\). A constant fit in \(\hat {\zeta }\) (open square in Fig. 2a) shows that it coincides with that obtained from the gravitational form factor (filled diamond in Fig. 2a) and the sum rule in Eq. (2) (to be explained in Sec. 6). This is a check for consistency between two different approaches. So far, this is a comparison between bare quantities. It would be necessary to have this comparison when renormalization are taken into account in both approaches. The Jaffe-Manohar OAM calculations are shown in Figs. 2b, c, and d as a function of η|v|/a at \(\hat {\zeta } = 0, 0.315\) and 0.63. The result from the jointly extrapolated η|v|/a and \(\hat {\zeta }\) to infinity would correspond to the Jaffe-Manohar OAM. The extrapolation of η|v|/a to infinity are shown in Figs. 2b, c, and d by the open squares. The plotted observable is even under η→−η, corresponding to time reversal. Accordingly, the |η|→∞ extrapolated values are obtained by averaging the η>0 and η<0 plateaus, which are determined by fitting to the |η||v|/a=7 to 9 range. Calculations are carried out for three \(\hat {\zeta }\) at 0, 0.315 and 0.63. Since there does not seem to be an appreciable variation going from \(\hat {\zeta }\) =0.315 to \(\hat {\zeta }\) =0.63, it suggests that the result at \(\hat {\zeta }\) =0.315 already well approximates the J-M limit of large \(\hat {\zeta }\). It is clear from Fig. 2c that the Jaffe-Manohar OAM at |η||v|/a→∞ is more negative than that of the Ji OAM at η=0. This difference has been interpreted as due to the final state interaction of the quark as it leaves the nucleon target in a DIS experiment [56].

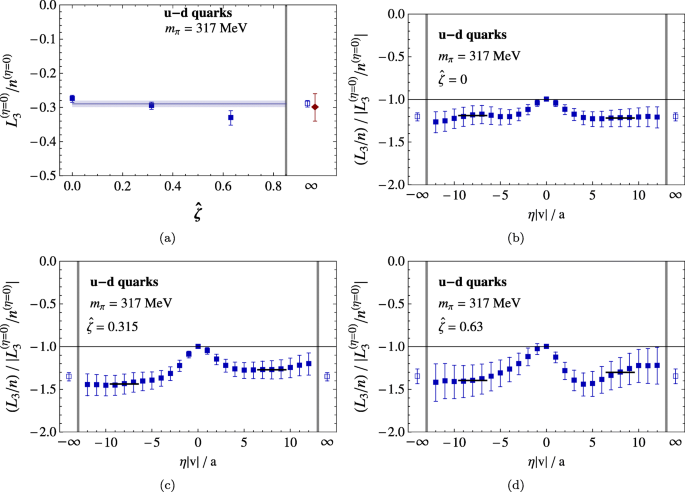

Fig. 2
figure 2

a Ji quark orbital angular momentum, i.e., the η=0 limit, for the three values of \(\hat {\zeta } \) probed, with the average plotted at \(\hat {\zeta } =\infty \) (open square). The filled diamond represents the value extracted at the same pion mass in the \(\overline {\text {MS}} \) scheme at the scale μ2=4 GeV2 via Ji’s sum rule in Eq. (2). The isovector u−d quark combination was evaluated. The shown uncertainties are statistical jackknife errors. b Quark orbital angular momentum at \(\hat {\zeta }= 0\) as a function of staple length parameter η|v|/a, normalized to the magnitude of Ji quark orbital angular momentum, i.e., the result obtained at η=0. The isovector u−d quark combination is shown with the statistical jackknife errors. c The same as b for \(\hat {\zeta }=0.315.\)d The same as b for \(\hat {\zeta }=0.63\)


This approach can be applied to the glue OAM LG. The present work on the iso-vector quark OAM \(L_{q}^{JM}\) needs to be renormalized to compare with future experiments in the \(\overline {MS}\) scheme. For OAM with different quark flavors, they will mix with LG and receives mixing contributions from ΔΣ and ΔG [57].

It has been shown that \(L_{q}^{JM}\) and LG can be calculates with local operators as for ΔG in Sec. 4. However, the matching to the light-cone via LaMET have similarly large matching coefficients [57].

Quark and glue momentum and angular momentum fractions in the nucleon

As we see from Sec. 2, besides the quark and glue spins, there are quark and glue orbital angular momenta (OAM) as parts of the proton spin. The OAM can be extracted experimentally from GPD and GTMD [53]. The calculation of Ji OAM \(L_{q}^{Ji}\) from GTMD, as discussed in Sec. 5, can also be obtained from the gravitational form factors of the energy-momentum tensor (EMT) [58–60].

In the following, we shall discuss the calculation of the quark and glue momentum fractions 〈x〉q and 〈x〉g and the angular momentum decomposition in Eq. (2). It is shown [25] that the momentum and angular momentum can be obtained from the gravitational form factors of the energy-momentum tensor. The matrix element of \({\mathcal T}^{\mu \nu }_{q,g}\) between two nucleon states can be written in terms of four form factors (T1,T2, D and \(\bar {C}\)).

\( \begin{aligned} \langle P'| \left(T_{q, g}^{\mu\nu}\right)_{R}(\mu)|P\rangle /2 M&= \bar{u}(P')[T_{1_{q,g}}(q^{2},\mu) \gamma^{(\mu} \bar{p}^{\nu)}\\ &\quad + T_{2_{q,g}}(q^{2},\mu) \frac{\bar{p}^{(\mu} i \sigma^{\nu)\alpha} q_{\alpha}}{2M} \\ &\quad+ D_{q,g}(q^{2},\mu)\frac{q^{\mu}q^{\nu} - \eta^{\mu\nu}q^{2}}{M}\\ &\quad + \bar{C}_{q,g}(q^{2}, \mu) M \eta^{\mu\nu} ] u(P), \end{aligned} \)
(9)

where p and p′ are the initial and final momenta of the nucleon, respectively, and \(\bar {p} = \frac {1}{2}\, (p' + p)\). qμ=pμ′−pμ is the momentum transfer to the nucleon, M is the mass of the nucleon. The nucleon spinor u(p,s) satisfies the normalization conditions \(\bar {u}(p,s)\, u(p,s)\, =\, 2m\,, \, \)\(\sum _{s} u(p,s)\, \bar {u}(p,s)\, = \, p\!\!\!/ + m.\) At the q2→0 limit, one obtains [25]

\(\begin{array}{*{20}l} \langle x\rangle_{q,g} (\mu) &= T_{1}(0, \mu)_{q,g}, \end{array} \)
(10)
\(\begin{array}{*{20}l} J_{q,g} (\mu)&= \frac{1}{2} \left[T_{1}(0, \mu) + T_{2}(0, \mu)\right]_{q,g}. \end{array} \)
(11)

where 〈x〉q,g(μ), obtained from the second moment of the unpolarized PDF, is the momentum fraction carried by the quarks or gluons inside a nucleon. The other form factor, T2(0,μ)q,g, is the anomalous gravitomagnetic moment for quarks and gluons in an analogy to the anomalous magnetic moment F2(0) [61, 62]. Also similar to F2(0),T2(0,μ) cannot be evaluated directly at q2=0 from Eq. (9). Instead, it needs to be calculated at small and finite q2 before taking the q2→0 limit. This is a much noisier calculation on the lattice than T1(0,μ), particularly for the glue matrix elements.

By making a connection to the stress tensor of the continuous medium, it is shown [63, 64] that Dq,g(q2,μ) is related to the internal force of the hadron and encodes the shear forces and pressure distributions of the quarks and glue in the nucleon. The pressure distribution of the quarks have been deduced from the experimentally measured Dq(q2,μ) [65] and the pressure distributions for both the quarks and glue from Dq,g(q2,μ) are calculated on the lattice [66]. The metric term \(\bar {C}\) at q2=0 is equal to the stress term Tii and the sum of the quark and glue parts is zero, i.e., \( \bar {C}_{q} (0)+ \bar {C}_{g} (0)= 0\) due to the conservation of the EMT, i.e. ∂νTμν=0. Being the diagonal part of the spatial stress-energy-momentum tensor, \(\bar {C}_{q,g}\) has been identified as the pressure [67, 68]. It is further shown [68] from the volume dependence that the gauge part of the trace anomaly gives the negative constant pressure to confine the hadron, the same way Einstein introduced the cosmological constant in the metric term of the EMT for a static universe.

T1 and T2 need to be renormalized and normalized, similar to the case for the flavor-singlet axial-vector current as discussed in Sec. 3. The perturbative renormalization of the quarks and glue EMT has been carried out [69, 70] for the quenched [71] and Nf=2 calculations [41]. The more reliable and preferred non-perturbative renormalization with the RI/MOM approach has been done for the Nf=2+1 case [72, 73], and the Nf=2+1+1 case [74]. The greatest challenge for the non-perturbative renormalization is the renormalization of the glue operator in the gluon propagator. This involves 3 noisy glue field operators that is as noisy as the glueball calculation. Using the cluster decomposition error reduction (CDER) technique [75], the glue EMT renormalization is brought under control [72]. CDER takes advantage of the cluster decomposition principle which states that correlator falls off exponentially with the distance between color-singlet operators. For disconnected insertions, summing over the relative coordinate between the operators to a limited range when the signal saturates can decrease the error by a \(\sqrt {V}\) factor as compared to summing over the coordinates of both operators, as is usually done.

Besides renormalization, there are mixing between the quark and glue operators. The structure of the renormalization matrix for 〈x〉q and 〈x〉g and for \(J_{q}^{ji}\) and JG are the same, since they involve the same quark and glue operators. The mixing between the quark and glue operators are carried out non-perturbatively in the RI/MOM scheme [76] for the Nf=2+1 flavor calculation with the overlap fermion [73, 77] and perturbatively for the Nf=2+1+1 flavor calculation with the twisted mass fermion [74].

For the normalization, one relies on the momentum and angular momentum sum rules. In this case, the normalization conditions for ZT,q and ZT,g are

\(\begin{array}{*{20}l} \mathcal{N}_{q} \langle x\rangle_{q}^{\overline{\text{MS}}} (\mu) + \mathcal{N}_{g} \langle x\rangle_{g}^{\overline{\text{MS}}} (\mu) &= 1, \end{array} \)
(12)

\(\begin{array}{*{20}l} \mathcal{N}_{q} J_{q}^{\overline{\text{MS}}} (\mu)+ \mathcal{N}_{g} J_{G}^{\overline{\text{MS}}} (\mu)&= \frac{1}{2}. \end{array} \)
(13)

It is straightforward to show [78] that Eq. (12) and Eq. (13) imply

\(\begin{array}{@{}rcl@{}} T_{2} (0)_{q} + T_{2} (0)_{g} &=& 0. \end{array} \)
(14)

The vanishing of total T2(0), the anomalous gravito-magnetic moment, in the context of a spin- 1/2 particle was first derived classically from the post-Newtonian manifestation of equivalence principle [79]. More recently, this has been proven [62] for composite systems from the light-front Fock space representation.

When the normalized and renormalized quark angular momentum \(\mathcal {N}_{q} J_{q}^{\overline {\text {MS}}}\) is calculated, the quark OAM can be obtained from subtracting the quark spin from it, i.e., \(L_{q}^{Ji} = J_{q} - \frac {1}{2} \Delta \Sigma \) (cf. Eq. (2)). The first complete calculation of the quark and glue momenta and angular momenta in the proton in the gauge invariant formulation (Eq. 2) was achieved in the quenched approximation with Wilson fermion [71, 81]. The dynamical fermion calculation with Nf=2 was done with twisted mass fermion [41]. Recently, there are two complete spin decomposition calculations. One is a twisted mass calculation on a Nf=2+1+1 lattice at a=0.08 fm and pion mass of 139 MeV [74]. The quark and glue operators are non-peturbatively renormalized and the quark-glue mixing is carried out perturbatively to one-loop. The results on the angular momentum fractions J in Eq. (2) for the u,d,s,c quarks and the glue are plotted in Fig. 3a. Since the total J is consistent with 1/2, no additional normalization is applied. The summed quark Jq is 57.1(9.0)% and Jg is 37.5(9.3)% of the total angular momentum. The quark spin contribution is also calculated which is \(\frac {1}{2} \Delta \Sigma = 0.191(15)\). This gives the quark OAM to be 18.8(10.2)(2)% of the total J. Another calculation is based on the valence overlap fermion on a domain wall fermion sea on a 323×64 lattice at a=1.43 fm and pion mass of 171 MeV with a box size of 4.6 fm [80]. The renormalization of the quark and glue operators and their mixings are carried out fully non-perturbatively. Since the attempt to calculate T2(0)q,g did not see a signal beyond one sigma [80], the normalization is done by assuming the normalization constants for the quark and the glue are the same in the sum rules in Eqs. (12) and (13). The results [80] on the percentage contributions of ΔΣ,Jg and \(L_{q}^{Ji}\) at 40(4)%, 46(5)% and 13(5)% respectively are shown in Fig. 3b. All these results are in the \(\overline {\text {MS}}\) scheme at 2 GeV. We notice that since the error of the spin components are relatively large in both of these calculations, it is not surprisingly that the results of these calculations are consistent within errors. More work is needed to reduce the statistical errors and control the systematic errors.

Fig. 3
figure 3

a Proton spin decomposition in terms of the angular momentum Jq for the u,d and s quarks and the glue angular momentum Jg in Ji’s decomposition in the nf=2+1+1 calculation [74]. b Spin decomposition in terms of the quark spin ΔΣ and its flavor contributions Δu,Δd and Δs, the glue Jg, and the quark OAM for the nf=2+1 case [80]


Summary

In the past four decades, lattice calculations have advanced from quenched approximation to including dynamical fermions at the physical quark masses. Multiple lattices with a range of lattice spacings and physical volumes are beginning to be available to allow continuum and infinite volume extrapolations to control systematic errors.

The calculations of the quark spin contribution have reached the physical pion point with some systematic errors taken into account. It is found to contribute ∼ 40% to the proton spin with a ∼ 10% combined statistical and systematic error. It has been demonstrated [74, 80] that all the quark and glue angular momentum components in the Ji decomposition can be tackled in lattice calculations with non-perturbative renormalization and normalization. The glue angular momentum contributes ∼ 38−46% and the quark angular momentum contribution is in the range 54−57%. The errors are at the ∼ 20% level. From the quark spin and the quark angular momentum, one obtains the quark orbital angular momentum in the range 13−18% with an error of ∼ 50%

For the Jaffe-Manohar decomposition, attempts have been made to calculate ΔG [45] with a local operator. However, there is an unsettled issue in the matching of the glue spin ΔG [45] and orbital angular momentum [32] to the light-front frame. The angular momenta of the quarks and glue can also be accessed with non-local operators [54, 55]. In this case, the renormalization and mixing need to be formulated and carried out.

With the ongoing experiments at JLab, HERMES and COMPASS on GPD and TMD and the large kinematic coverage in the future EIC to extend to smaller x, the measurements of quark and glue spin and their angular momentum (total and orbital) are expected to be greatly improved. The lattice calculations of these quantities with combined statistical and systematic errors less than ∼ 5% are needed to meet the challenge of reliable comparison with experiments in order to gain more insight on the spin structure of the nucleon.

Availability of data and materials

The datasets generated during and/or analyzed during the current study are available from the author on reasonable request.
